| General |
| Brand |
ASRock |
| Model |

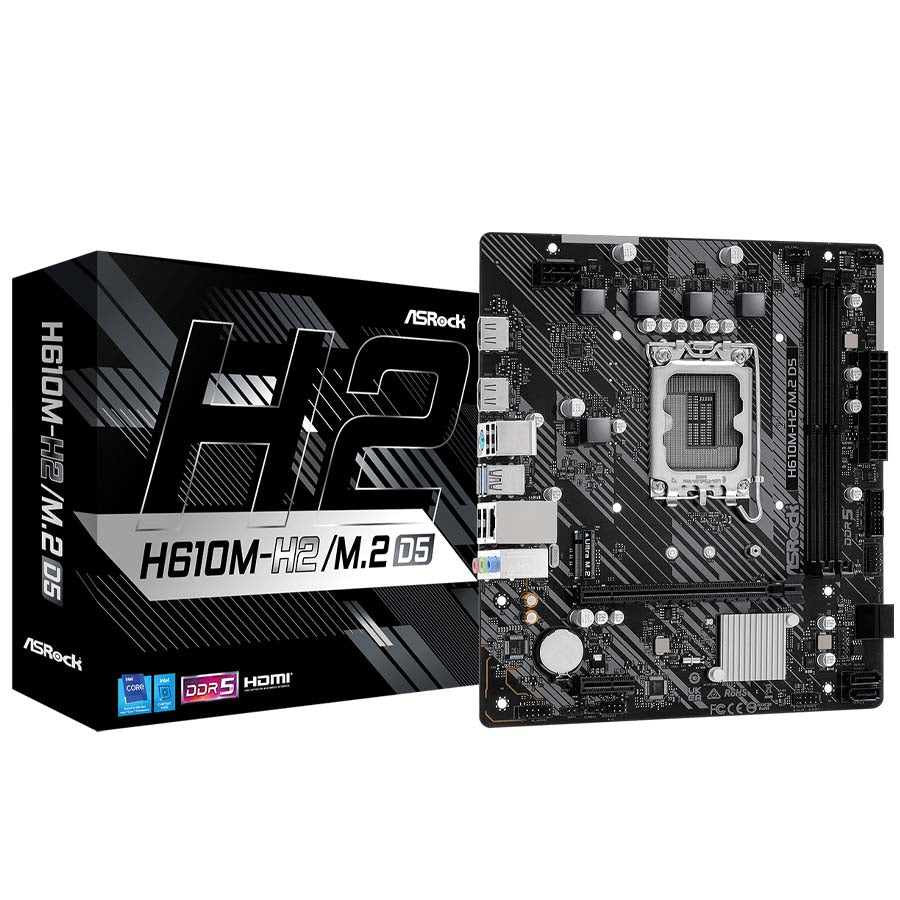

H610M-H2/M.2 D5 |
| Part Number |
90-MXBML0-A0KAYF |
| Form Factor |
Micro-ATX |
| Chipset |
Intel H610 |
| Socket |
LGA1700 |
| Supported CPUs |
14th, 13th and 12th Gen Intel Core; Intel Hybrid Technology, Turbo Boost Max 3.0 |
| Power Design |
3+1+1 phase, digital PWM |
| Memory |
| DIMM Slots |
2x DDR5, dual channel |
| Max Capacity |
96GB |
| Speed |
Up to 5600 MHz (13th Gen), 4800 MHz (12th Gen) |
| Types |
Non-ECC, unbuffered |
| Profiles |
Intel XMP 3.0 |
| Graphics Outputs |
| Integrated Graphics |
Intel Xe Graphics (Gen 12), with CPUs that have integrated graphics |
| HDMI |
2x HDMI 2.1 (TMDS compatible), HDCP 2.3, up to 4K@60Hz |
| Expansion Slots |
| PCIe x16 (CPU) |
1x PCIe 4.0 x16 (x16 mode) |
| PCIe x1 (Chipset) |
1x PCIe 3.0 x1, supports NVMe boot |
| Storage |
| M.2 |
1x Ultra M.2 (Key M), 2242/2260/2280, PCIe Gen3 x4 (32 Gb/s), NVMe boot |
| SATA |
4x SATA3 6.0 Gb/s |
| Networking |
| LAN |
Gigabit LAN 10/100/1000 Mb/s, Realtek 8111H |
| Wireless |
Not included |
| Audio |
| Codec |
7.1 CH HD Audio, Realtek ALC897 |
| USB |
| Rear USB |
2x USB 3.2 Gen1 Type-A, 4x USB 2.0 |
| Front USB Headers |
1x USB 3.2 Gen1 header (2 ports), 1x USB 2.0 header (2 ports) |
| Protection |
ESD protection on all USB ports |
| Rear I/O |
| Ports |
1x PS/2 mouse/keyboard, 2x HDMI, 2x USB 3.2 Gen1 Type-A, 4x USB 2.0, 1x RJ-45 LAN, HD audio jacks (Line in, Front Speaker, Microphone) |
| Internal Connectors |
| Fan Headers |
1x CPU fan (4-pin, 1A/12W), 1x chassis/water pump fan (4-pin, 2A/24W, smart fan control) |
| Other |
SPI TPM header, chassis intrusion and speaker header, front panel audio |
| Power |
| Main Power |
1x 24-pin ATX |
| CPU Power |
1x 8-pin 12V |
| BIOS & Features |
| BIOS |
128Mb AMI UEFI with GUI |
| UEFI Features |
EZ Mode, Full HD UEFI, My Favorites, Auto Driver Installer, Instant Flash |
| Software |
ASRock Motherboard Utility (A-Tuning) |
| Certifications |
FCC, CE, ErP/EuP ready |
| Dimensions & OS |
| Size |
22.0 x 19.3 cm (8.66 x 7.6 in) |
| Operating System |
Windows 10 64-bit, Windows 11 64-bit |
