| General |
| Model |

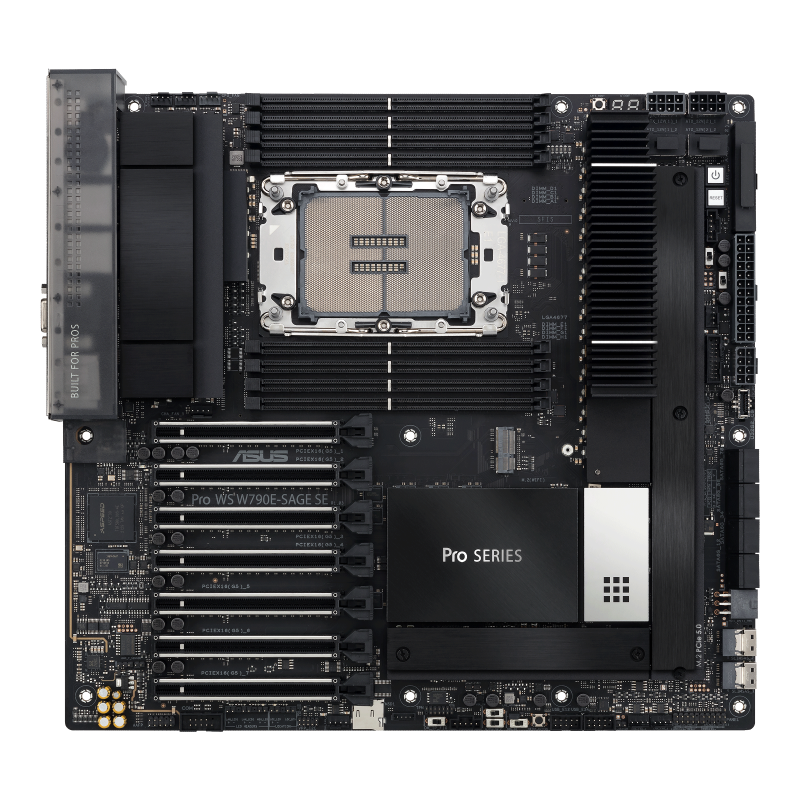

Pro WS W790E-SAGE SE |
| Part Number |
90MB1C20-M0EAY0 |
| Series |
ASUS Pro WS (Workstation) |
| Form Factor |
EEB |
| Dimensions |
30.5 x 33 cm (12 x 13 in) |
| Processor |
| CPU Socket |
Intel LGA4677 |
| Supported CPUs |
Intel Xeon W-3500 / W-3400 and W-2500 / W-2400 series |
| Chipset |
Intel W790 |
| Memory |
| Memory Slots |
8 x DIMM |
| Memory Type |
DDR5 ECC Registered, 4800 up to 6800 (OC), XMP |
| Max Memory |
2048 GB |
| Memory Architecture |
8-channel |
| Graphics |
| Display Outputs |
1 x VGA (ASPEED AST2600) |
| Expansion & Storage |
| PCIe Slots |
W-3500/W-3400: 7 x PCIe 5.0 (x16/x16/x16/x16/x16/x8/x16); W-2500/W-2400: 4 x PCIe 5.0 x16 |
| M.2 Slots |
3 x M.2 Key M (2242-22110): M.2_1/M.2_2 PCIe 5.0 x4 (W-3500/W-3400), M.2_3 PCIe 4.0 x4 |
| SlimSAS |
2 x SlimSAS (PCIe 4.0 x4 NVMe) |
| SATA Ports |
8 x SATA 6Gb/s |
| RAID |
Intel VROC RAID 0/1/5/10 (key sold separately), Intel VMD |
| Networking |
| Ethernet |
Intel dual 10Gb Ethernet + Realtek 1Gb dedicated to BMC/IPMI |
| Audio |
| Audio Codec |
Realtek S1220A 7.1 HD audio, 120 dB SNR playback, optical S/PDIF out |
| Ports |
| Rear USB |
1 x USB 3.2 Gen 2x2 Type-C, 5 x USB 3.2 Gen 2 (4 Type-A + 1 Type-C), 2 x USB 2.0 |
| Front USB |
1 x USB 3.2 Gen 2 Type-C connector, 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports) |
| Other Rear I/O |
VGA, 2 x 10Gb LAN, 1 x 1Gb BMC LAN, 5 x audio jacks, optical S/PDIF, BIOS FlashBack and Clear CMOS buttons |
| Internal Connectors |
| Fan Headers |
CPU, CPU OPT, 5 x chassis (4-pin), W_PUMP+ |
| Power Connectors |
2 x 24-pin, 4 x 8-pin 12V, 1 x 8-pin PCIe, 1 x 6-pin PCIe |
| Features |
| Remote Management |
ASPEED AST2600 BMC, IPMI, ASUS Control Center Express |
| Thermal |
M.2 heatsink and backplate, steel backplate, VRM heatsink |
| Software & BIOS |
| BIOS |
512 Mb Flash ROM, UEFI AMI BIOS |
| Operating System |
Windows 11 / Windows 10 64-bit |
| Warranty |
| Warranty |
Official ASUS warranty |
