| General |
| Model |

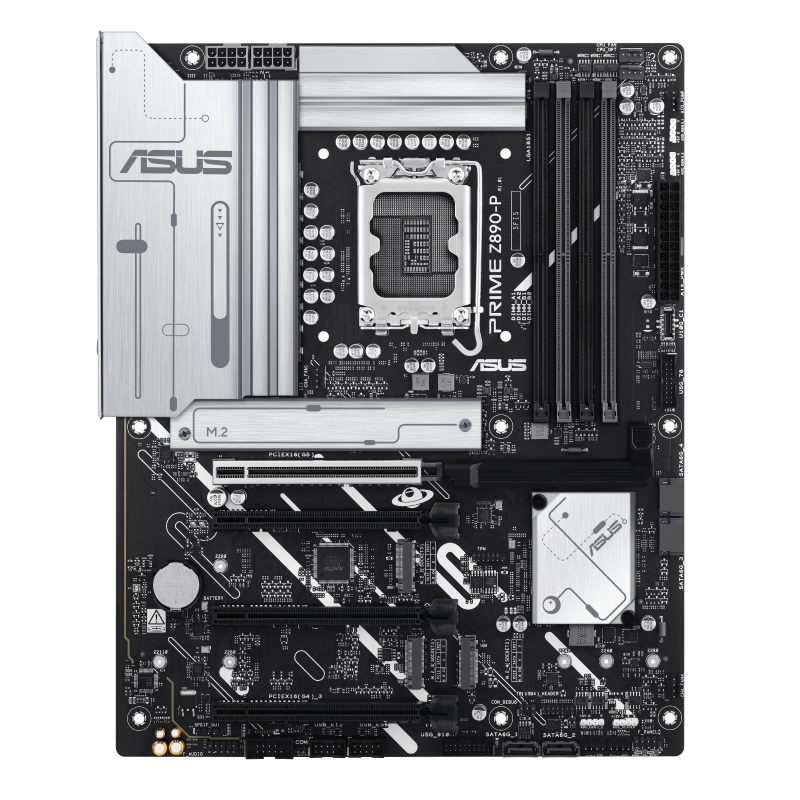

PRIME Z890-P |
| Part Number |
90MB1I50-M0EAY0 |
| Series |
ASUS PRIME |
| Form Factor |
ATX |
| Dimensions |
30.5 x 24.4 cm (12 x 9.6 in) |
| Processor |
| CPU Socket |
Intel LGA1851 |
| Supported CPUs |
Intel Core Ultra Processors (Series 2) |
| Chipset |
Intel Z890 |
| Memory |
| Memory Slots |
4 x DIMM |
| Memory Type |
DDR5 non-ECC unbuffered and CUDIMM, up to 8666+ MT/s (OC), XMP, ASUS AEMP III |
| Max Memory |
256 GB |
| Memory Architecture |
Dual channel |
| Graphics |
| Display Outputs |
1 x DisplayPort (4K@60Hz), 1 x HDMI 2.1 (4K@60Hz), 1 x USB 20Gbps Type-C with DP Alt Mode |
| Expansion & Storage |
| PCIe Slots |
1 x PCIe 5.0 x16 (CPU); 2 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x16 (x1 mode) (chipset) |
| M.2 Slots |
4 x M.2: M.2_1 PCIe 5.0 x4; M.2_2, M.2_3, M.2_4 PCIe 4.0 x4 (M.2_4 also SATA) |
| SATA Ports |
4 x SATA 6Gb/s |
| RAID |
Intel RST RAID 0/1/5/10 |
| Networking |
| Ethernet |
1 x Realtek 2.5Gb with ASUS LANGuard |
| Wireless |
Not included |
| Audio |
| Audio Codec |
Realtek 7.1 HD audio, up to 24-bit/192kHz |
| Ports |
| Rear USB |
1 x USB 20Gbps Type-C, 1 x USB 10Gbps Type-A, 2 x USB 5Gbps Type-A, 4 x USB 2.0 |
| Front USB |
1 x USB 10Gbps Type-C connector, 2 x USB 5Gbps headers (4 ports), 2 x USB 2.0 headers (4 ports) |
| Other Rear I/O |
DisplayPort, HDMI, 2.5Gb LAN, 3 x audio jacks, BIOS FlashBack button |
| Internal Connectors |
| Fan Headers |
CPU, CPU OPT, AIO pump, 4 x chassis (all 4-pin) |
| Power Connectors |
24-pin ATX + 2 x 8-pin 12V |
| Lighting Headers |
1 x Aura RGB, 3 x Addressable Gen 2 |
| Features |
| Power Design |
DIGI+ VRM with DrMOS |
| Thermal |
M.2 heatsink, VRM heatsink |
| Software & BIOS |
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
| Operating System |
Windows 11 22H2+ / Windows 10 21H2+ 64-bit |
| Warranty |
| Warranty |
Official ASUS warranty |
