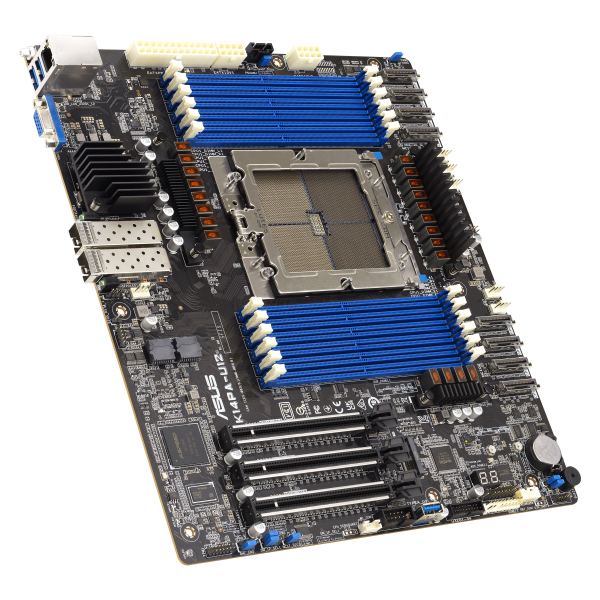

The ASUS K14PA-U12 (90SB0CI0-M0UAY0) is a single-socket CEB server motherboard for AMD EPYC 9004 Series processors (Socket SP5). It has 12 DDR5-4800 RDIMM slots up to 3TB, 3x PCIe 5.0 x16 slots, 8x MCIO Gen5 connectors for up to 16 NVMe drives and dual 25Gb SFP28 networking.
With 12-channel memory, an Aspeed AST2600 BMC for remote management and compact 12 x 10.5 inch CEB dimensions, it suits telco, cloud, edge and high-memory workstation deployments.
Key Features
Single Socket SP5 (LGA 6096) for AMD EPYC 9004 Series, up to 96 Zen 4 or 128 Zen 4c cores
12x DDR5-4800 RDIMM / 3DS RDIMM slots (12-channel), up to 3TB
3x PCIe 5.0 x16 slots, bifurcation x4x4x4x4 in BIOS
8x MCIO Gen5 x8 connectors supporting up to 16 NVMe drives (2 also support SATA)
8x MCIO Gen5 x8 (6 NVMe only, 2 NVMe or SATA), up to 16 NVMe drives
M.2 Slots
1x M.2 2280 PCIe 5.0 x4 (SATA mode supported)
SATA
Integrated CPU SATA controller via MCIO
Connectivity
Ethernet
2x SFP28 25Gb/s (Broadcom BCM57414), teaming support
Network Management
1x dedicated management LAN (RJ-45)
Graphics
Aspeed AST2600 VGA, 64MB
Management
BMC
Aspeed AST2600; ASMB11-iKVM
Remote Management
ASUS Control Center
Ports & Connectors
Rear USB
2x USB 3.2 Gen1
Rear I/O Extras
1x VGA, 2x SFP28, 1x RJ-45 management LAN
Internal Connectors
1x USB 3.2 Gen1 header (2 ports), 1x vertical USB Type-A, TPM, serial, VGA header, SMBus, chassis intrusion, Q-Code/Port 80 LED
Fan Headers
6x 4-pin
Power Connectors
1x 24-pin SSI, 2x 8-pin SSI 12V
Physical & Warranty
Form Factor
CEB
Dimensions
12 x 10.5 in (30.5 x 26.7 cm)
Operating Temperature
10 to 35 °C
Warranty
Official ASUS warranty
Who Is This For?
System integrators building single-socket AMD EPYC 9004 servers
Telco, cloud and edge deployments
High-memory workstations needing up to 3TB DDR5
All-flash NVMe storage servers with up to 16 drives
How It Compares
Unlike desktop AM5 boards, the K14PA-U12 uses AMD EPYC 9004 processors with 12-channel registered DDR5 and server-grade BMC management, targeting data-centre and edge workloads rather than gaming.
Why Buy from PC PARK?
100% original product with official warranty
Delivery to all regions of Saudi Arabia (Riyadh, Jeddah, Dammam and more)
Secure online checkout
Pre- and after-sales support from the PC PARK team
Frequently Asked Questions
Which processors does the ASUS K14PA-U12 support? AMD EPYC 9004 Series processors on Socket SP5, up to 96 Zen 4 or 128 Zen 4c cores.
How much memory does it support? Up to 3TB DDR5-4800 RDIMM or 3DS RDIMM across 12 DIMM slots.
What is the form factor? CEB, 12 x 10.5 inches.
What networking does it have? Two SFP28 25Gb/s ports plus a dedicated RJ-45 management LAN.
Is the ASUS K14PA-U12 original? Yes. PC PARK sells 100% original ASUS products covered by the official ASUS warranty.
What warranty does it come with? It comes with the official ASUS warranty.
Do you deliver the ASUS K14PA-U12 in Saudi Arabia? Yes. PC PARK delivers to all regions of Saudi Arabia, with delivery time shown at checkout.
Order the ASUS K14PA-U12 server motherboard (90SB0CI0-M0UAY0) from PC PARK with official warranty and fast delivery across Saudi Arabia.
