| General |
| Brand |
ASUS |
| Model |

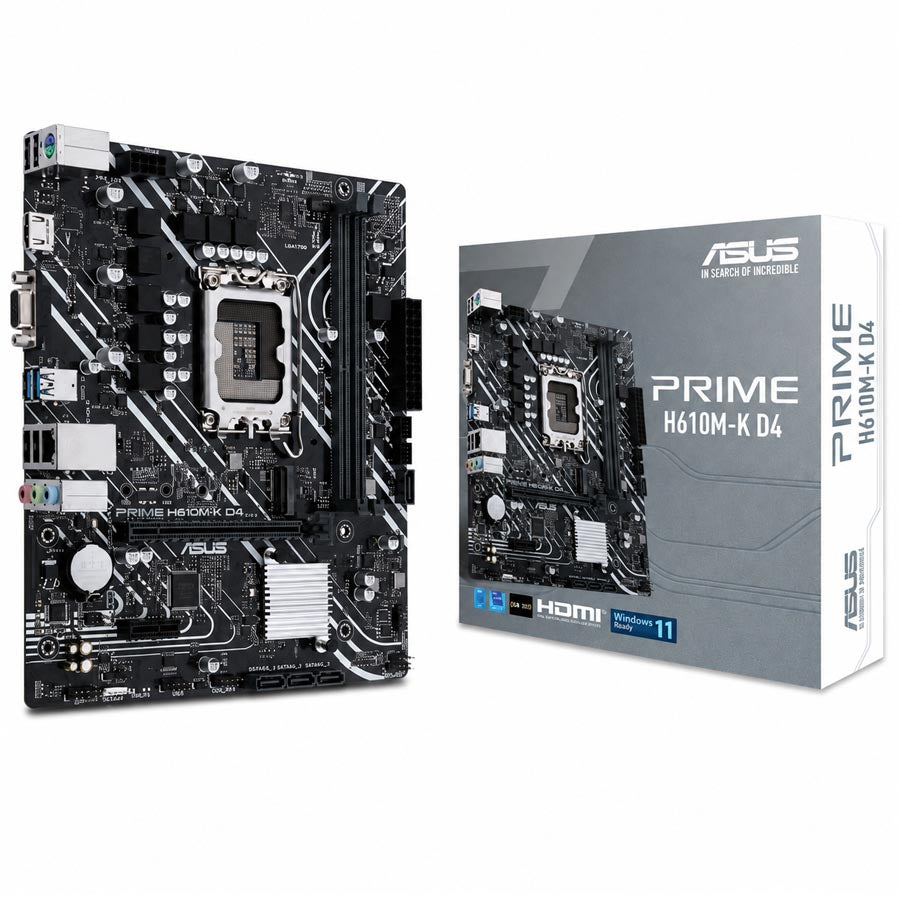

PRIME H610M-K D4 |
| Part Number |
90MB1A10-M0EAY0 |
| Form Factor |
Micro-ATX |
| Chipset |
Intel H610 |
| Socket |
LGA1700 |
| Supported CPUs |
14th, 13th and 12th Gen Intel Core, Pentium Gold and Celeron; Turbo Boost 2.0 and Max 3.0 |
| Memory |
| DIMM Slots |
2x DDR4, dual channel |
| Max Capacity |
64GB |
| Speed |
3200/3000/2933/2800/2666/2400/2133 |
| Types |
Non-ECC, unbuffered |
| Profiles |
Intel XMP |
| Graphics Outputs |
| HDMI |
1x HDMI 2.1, 4K@60Hz |
| D-Sub |
1x D-Sub (VGA) |
| Note |
Outputs vary by CPU (needs integrated graphics) |
| Expansion Slots |
| PCIe x16 (CPU) |
1x PCIe 4.0 x16 |
| PCIe x1 (Chipset) |
1x PCIe 3.0 x1 |
| Storage |
| M.2 |
1x M.2 (Key M), 2242/2260/2280, PCIe 3.0 x4 and SATA modes |
| SATA |
4x SATA 6Gb/s |
| Sharing |
M.2 in SATA mode disables SATA6G_4 |
| Networking |
| LAN |
1x Realtek 1Gb Ethernet, ASUS LANGuard |
| Wireless |
Not included |
| Audio |
| Codec |
Realtek 7.1 Surround Sound HD audio CODEC |
| Playback |
Up to 24-bit/192kHz |
| Features |
Jack detection, multi-streaming, front panel jack retasking, audio shielding, dedicated audio PCB layers |
| USB |
| Rear USB (6) |
2x USB 3.2 Gen 1 Type-A, 4x USB 2.0 Type-A |
| Front USB (4) |
1x USB 3.2 Gen 1 header (2 ports), 1x USB 2.0 header (2 ports) |
| Rear I/O |
| Ports |
2x USB 3.2 Gen 1, 4x USB 2.0, 1x D-Sub, 1x HDMI, 1x 1Gb LAN, 3x audio jacks, 1x PS/2 keyboard/mouse combo |
| Internal Connectors |
| Fan Headers |
1x CPU fan, 1x chassis fan (4-pin) |
| RGB |
1x RGB header |
| Other |
Clear CMOS, COM, front panel audio (AAFP), S/PDIF out, speaker, SPI TPM (14-1 pin), 10-1 pin system panel |
| Power |
| Main Power |
1x 24-pin |
| CPU Power |
1x 8-pin +12V |
| VRM |
DIGI+ VRM |
| BIOS & Features |
| BIOS |
128Mb Flash ROM, UEFI AMI BIOS |
| BIOS Features |
CrashFree BIOS 3, EZ Flash 3, UEFI BIOS EZ Mode |
| Protection |
ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, overvoltage protection, SafeSlot Core, stainless-steel back I/O |
| Software |
Armoury Crate, AI Suite 3, Fan Xpert, ASUS CPU-Z |
| Manageability |
Wake-on-LAN by PME, PXE |
| Dimensions & OS |
| Size |
23.4 x 20.3 cm (9.2 x 8.0 in) |
| Operating System |
Windows 11 64-bit, Windows 10 64-bit |
