| General |
| Brand |
ASUS |
| Model |

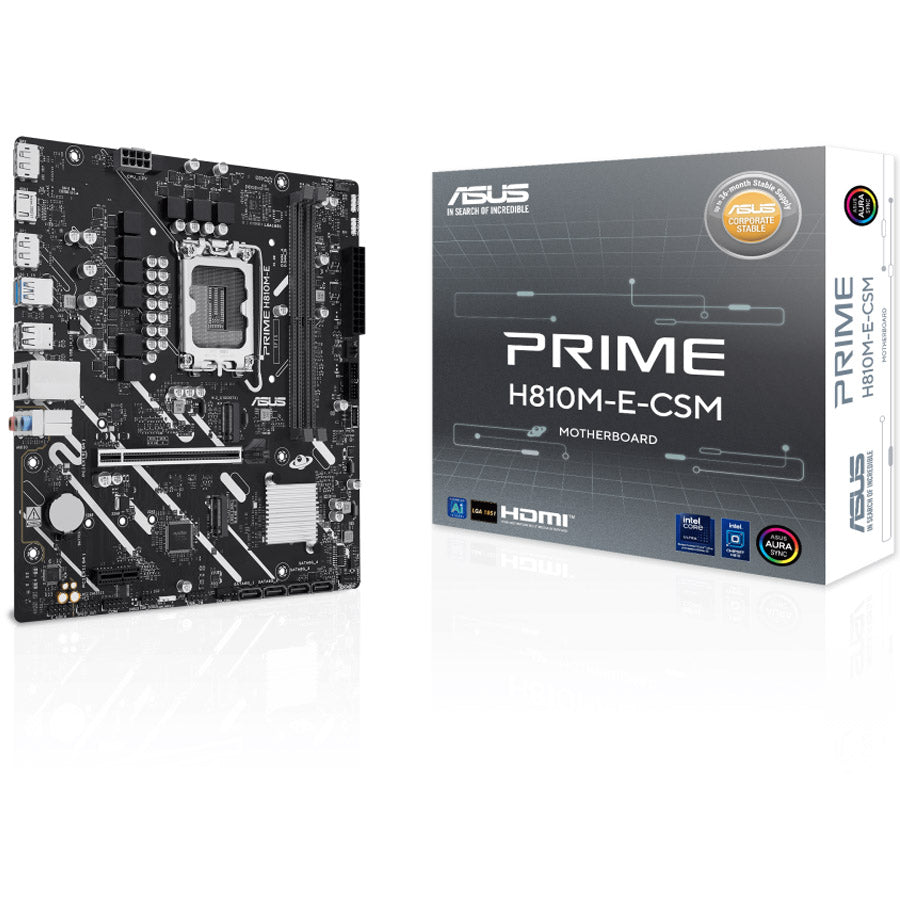

PRIME H810M-E-CSM |
| Part Number |
90MB1N20-M0EAYC |
| Form Factor |
Micro-ATX |
| Chipset |
Intel H810 |
| Socket |
LGA1851 |
| Supported CPUs |
Intel Core Ultra 200S / 200S Plus (Series 2); Turbo Boost 2.0 and Max 3.0 |
| Memory |
| DIMM Slots |
2x DDR5, dual channel |
| Max Capacity |
128GB |
| Speed |
Up to 7200 MT/s (Core Ultra 200S Plus), 6400 MT/s (Core Ultra 200S) |
| Types |
Non-ECC unbuffered DIMM and CUDIMM |
| Features |
Intel XMP, ASUS AEMP II, DIMM.FIT |
| Graphics Outputs |
| DisplayPort |
2x DisplayPort 1.4, up to 4K@60Hz |
| HDMI |
1x HDMI 2.1, 4K@60Hz |
| Note |
Outputs vary by CPU |
| Expansion Slots |
| PCIe x16 (CPU) |
1x PCIe 4.0 x16 |
| PCIe x1 (Chipset) |
1x PCIe 4.0 x1 |
| Storage |
| M.2_1 |
2280, PCIe 4.0 x4 |
| M.2_2 |
2242/2260/2280, PCIe 4.0 x2 |
| SATA |
4x SATA 6Gb/s |
| Networking |
| LAN |
1x Realtek 1Gb Ethernet, ASUS LANGuard |
| Wireless |
Not included |
| Audio |
| Codec |
Realtek 7.1 Surround Sound HD audio CODEC |
| Playback |
Up to 24-bit/192kHz |
| Features |
Jack detection, multi-streaming, front panel jack retasking, audio shielding, premium capacitors, dedicated audio PCB layers |
| USB |
| Rear USB (6) |
2x USB 5Gbps Type-A, 4x USB 2.0 Type-A |
| Front USB (5) |
1x USB 5Gbps Type-C connector (5V/3A), 1x USB 5Gbps header (2 ports), 1x USB 2.0 header (2 ports) |
| Rear I/O |
| Ports |
2x USB 5Gbps Type-A, 4x USB 2.0 Type-A, 2x DisplayPort, 1x HDMI, 1x 1Gb LAN, 3x audio jacks |
| Internal Connectors |
| Fan Headers |
1x CPU fan, 2x chassis fan (4-pin) |
| RGB |
3x Addressable Gen 2 RGB headers |
| Other |
Clear CMOS, chassis intrusion, COM, front panel audio, S/PDIF out, SPI TPM (14-1 pin), 10-1 pin system panel |
| Power |
| Main Power |
1x 24-pin |
| CPU Power |
1x 8-pin +12V |
| VRM |
DIGI+ VRM |
| BIOS & Features |
| BIOS |
256Mb (128+128) Flash ROM, UEFI AMI BIOS |
| BIOS Features |
CrashFree BIOS 3, EZ Flash, EZ Mode, MyHotkey, DIMM.FIT Pro |
| Protection |
ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, overvoltage protection, SafeSlot Core+, stainless-steel back I/O |
| Software |
Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+), DriverHub, ASUS CPU-Z |
| Manageability |
Wake-on-LAN by PME, PXE |
| Dimensions & OS |
| Size |
24.4 x 22.2 cm (9.6 x 8.75 in) |
| Operating System |
Windows 11 (22H2+), Windows 10 64-bit (21H2+); Core Ultra 200S Plus fully supported on Windows 11 25H2+ |
