| General |
| Brand |
ASUS |
| Series |
ProArt |
| Model |

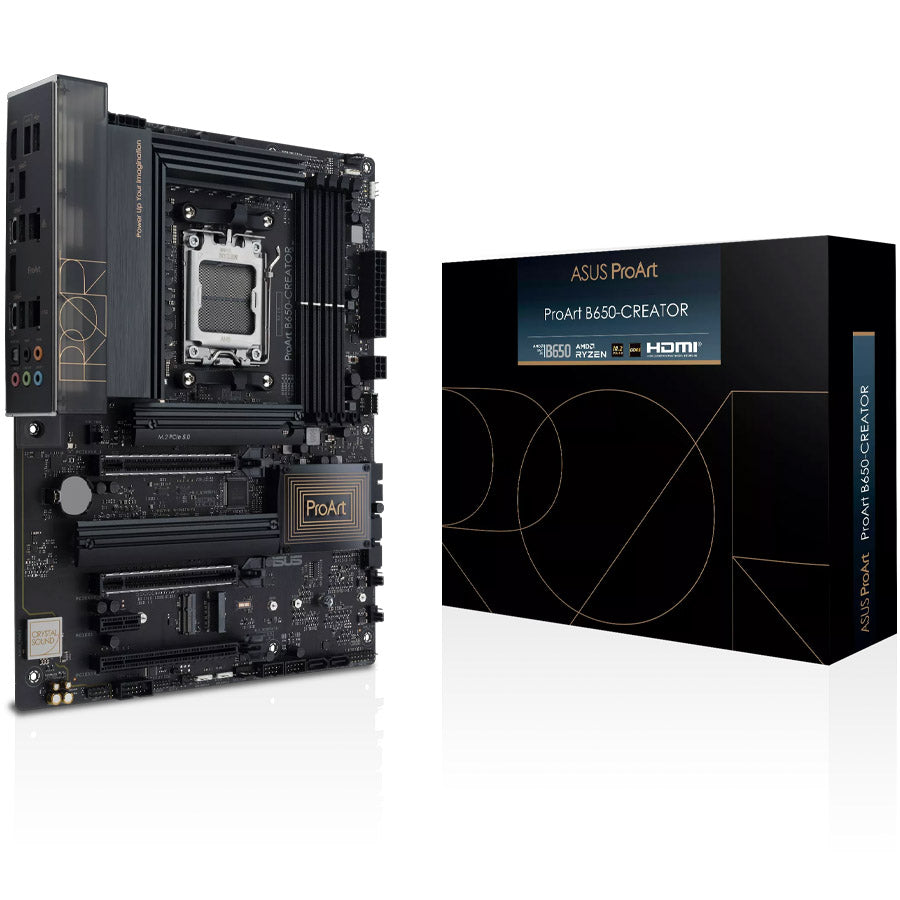

ProArt B650-CREATOR |
| Part Number |
90MB1C40-M0EAY0 |
| Form Factor |
ATX, 30.5 x 24.4 cm (12 x 9.6 in) |
| OS Support |
Windows 11, Windows 10 (64-bit) |
| Processor & Chipset |
| Socket |
AMD AM5 |
| CPU Support |
AMD Ryzen 9000 / 8000 / 7000 Series desktop |
| Chipset |
AMD B650 |
| Memory |
| Slots |
4 x DDR5 DIMM |
| Max Capacity |
Up to 192GB |
| Speed |
4800 up to 7600+ MT/s (OC) |
| Features |
Dual channel, ECC and non-ECC unbuffered, AMD EXPO, OptiMem II |
| Expansion |
| CPU |
2 x PCIe 4.0 x16 (x16 or x8/x8) |
| Chipset |
1 x PCIe 4.0 x16 (x4 mode, shares with M.2_3), 1 x PCIe 4.0 x1 |
| Storage |
| M.2_1 |
2242/2260/2280; PCIe 5.0 x4 (Ryzen 9000/7000), PCIe 4.0 x4 (Ryzen 8000) |
| M.2_2 |
2242-22110; PCIe 4.0 x4 (Ryzen 9000/7000), x4/x2 (Ryzen 8000) |
| M.2_3 |
2242-22110; PCIe 4.0 x4 (chipset) |
| SATA |
4 x SATA 6Gb/s |
| RAID |
AMD RAIDXpert2 NVMe/SATA RAID 0/1/10 |
| Networking |
| LAN |
1 x Realtek 2.5Gb + 1 x Realtek 1Gb, ASUS LANGuard |
| Wireless |
M.2 Key E slot; Wi-Fi module sold separately |
| Rear I/O |
| USB |
7 ports: 1 x USB 3.2 Gen 2 Type-C (DP Alt), 3 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C, 2 x USB 2.0 |
| Video |
1 x HDMI 2.1 (4K 60Hz), USB-C DisplayPort 1.4 (up to 8K 60Hz), 1 x DisplayPort input |
| Other |
5 audio jacks, optical S/PDIF out, BIOS FlashBack button |
| Audio |
Realtek 7.1 surround HD codec, up to 24-bit/192kHz |
| Front USB |
| USB-C |
1 x USB 3.2 Gen 2x2 Type-C, up to 60W PD/QC4+ (with 6-pin PCIe power; 27W otherwise) |
| Headers |
1 x USB 3.2 Gen 1 (2 ports), 2 x USB 2.0 (4 ports) |
| Internal Connectors |
| Fan Headers |
1 x CPU, 1 x CPU OPT, 1 x AIO pump, 4 x chassis (4-pin) |
| Power |
1 x 24-pin, 1 x 8-pin +12V, 1 x 4-pin +12V, 1 x 6-pin PCIe |
| RGB / Other |
3 x Addressable Gen 2, 1 x Aura RGB, Thunderbolt (USB4) header, COM, thermal sensor |
| BIOS & Manageability |
| BIOS |
256Mb flash ROM, UEFI AMI BIOS, BIOS FlashBack |
| Manageability |
WOL by PME, PXE, ASUS Control Center Express |
