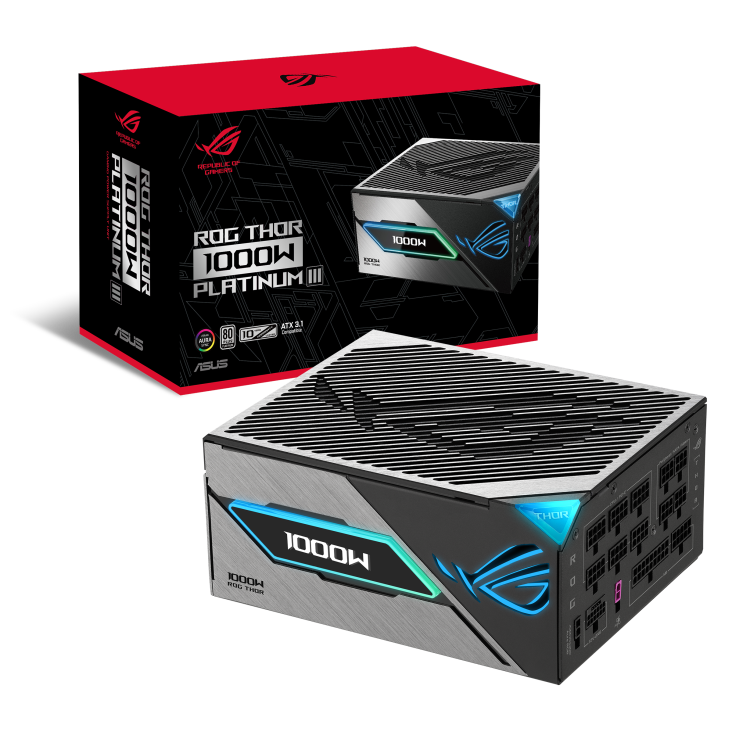

ASUS ROG Thor 1000W Platinum III Power Supply, 80 PLUS Platinum, ATX 3.1, PCIe 5.1, Magnetic OLED Display, Fully Modular, Aura Sync ARGB, (90YE00V3-B0NA00)
The ASUS ROG Thor 1000W Platinum III is a flagship 1000W power supply with 80 PLUS Platinum efficiency, ATX 3.1 compliance and a native PCIe 5.1 16-pin cable. Its magnetic OLED display shows real-time power draw, while a 135 mm Axial-tech fan with 0dB mode, a Cybenetics A++ noise rating and Aura Sync ARGB complete the package.
Key Features
1000W output with an 83.33A +12V rail
80 PLUS Platinum efficiency and Cybenetics A++ noise rating
ATX 3.1 with native PCIe 5.1 16-pin GPU cable
Magnetic, repositionable OLED display for live power monitoring
Fully modular, individually sleeved cables
135 mm Axial-tech fan with dual ball bearings and 0dB button
Aura Sync addressable RGB lighting
Protection: OPP, OVP, UVP, SCP, OCP and OTP; MTBF over 120,000 hours
Full Specifications
General
Brand
ASUS
Model
ROG Thor 1000W Platinum III
Part Number
90YE00V3-B0NA00
Wattage
1000W
Form Factor
ATX
ATX / PCIe Standard
ATX 3.1, PCIe Gen 5.1 16-pin
Efficiency
80 PLUS Rating
80 PLUS Platinum
Cybenetics Noise
A++
Input
AC Input Voltage
100-240 Vac
PFC
Active PFC
DC Output
Rails
+3.3V / +5V / +12V / -12V / +5Vsb
Max Load
30A / 25A / 83.33A / 0.3A / 3A
Combined Load
125W / 125W / 1000W / 3.6W / 15W
Total Output
1000W
Connectors
Motherboard
1x 24/20-pin
CPU (EPS)
2x 4+4-pin
PCIe 12V-2x6 (16-pin)
1x
PCIe 6+2-pin
4x
SATA
7x
Peripheral (Molex)
6x
Modularity & Cables
Modular Design
Fully modular, individually sleeved cables
Cable Lengths
Motherboard 610 mm; CPU 2x 1000 mm; PCIe 5.1 16-pin 750 mm; PCIe 1-to-1 4x 750 mm; SATA 1-to-4 and 1-to-3 400+120 mm segments; Peripheral 1-to-3 2x 400+150+150 mm; ARGB 800 mm
Cooling
Fan
135 mm Axial-tech fan, dual ball bearings
0dB / Zero RPM Mode
Yes, 0dB fan button
Heatsink
ROG heatsinks
Lighting & Display
OLED Display
Magnetic, repositionable OLED power display
Aura Sync
Yes, addressable RGB
Protections
Protection Features
OPP, OVP, UVP, SCP, OCP, OTP
MTBF
More than 120,000 hours at 25°C
Hazardous Materials
RoHS
Dimensions & Weight
Dimensions
190 x 150 x 86 mm
Weight
2.37 kg
Who Is It For?
Enthusiasts building high-end ROG gaming PCs
Gamers using RTX 40/50 series graphics cards
Builders who want live power readouts and RGB
Users who want a quiet PC with 0dB fan mode
In the Box
ASUS ROG Thor 1000W Platinum III power supply
Power cord
Motherboard cable, 2x CPU cables
PCIe Gen 5.1 16-pin cable, 4x PCIe 1-to-1 cables
SATA 1-to-4, SATA 1-to-3 and 2x peripheral 1-to-3 cables
