| General |
| Brand |
ASUS |
| Series |
TUF GAMING |
| Model |

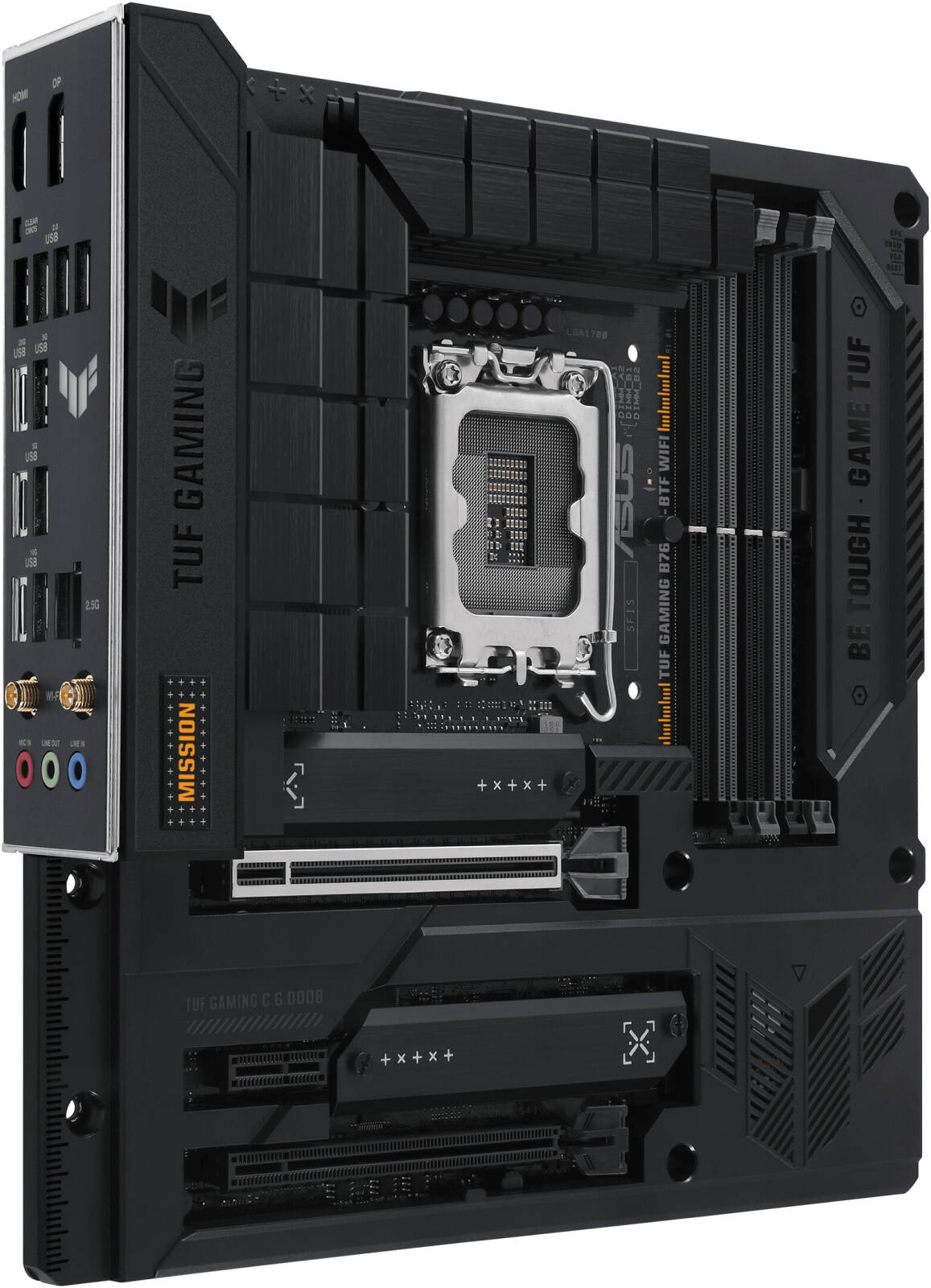

TUF GAMING B760M-BTF WIFI |
| Part Number |
90MB1G50-M0EAY0 |
| Form Factor |
Micro-ATX, 24.4 x 24.4 cm (9.6 x 9.6 in) |
| Design |
BTF hidden-connector (back-connect) design; works with standard GPUs |
| OS Support |
Windows 11, Windows 10 (64-bit) |
| Processor & Chipset |
| Socket |
LGA1700 |
| CPU Support |
Intel Core 12th / 13th / 14th Gen, Pentium Gold, Celeron |
| Chipset |
Intel B760 |
| Memory |
| Slots |
4 x DDR5 DIMM |
| Max Capacity |
192GB |
| Speed |
4800-5600 MT/s; OC 5800-7200 MT/s |
| Features |
Dual channel, non-ECC unbuffered, XMP, OptiMem II, On-Die ECC |
| Expansion |
| CPU |
1 x PCIe 5.0 x16 |
| Chipset |
1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x1 |
| Storage |
| M.2_1 |
PCIe 4.0 x4 (CPU), 2242/2260/2280 |
| M.2_2 |
PCIe 4.0 x4 (chipset), 2242/2260/2280 |
| M.2_3 |
PCIe 4.0 x4 (chipset), 2280; shares bandwidth with PCIe x16 (x4) slot |
| SATA |
4 x SATA 6Gb/s |
| RAID |
Intel RST SATA RAID 0/1/5/10 |
| Networking |
| LAN |
Realtek 2.5Gb Ethernet |
| Wi-Fi |
Wi-Fi 6 (802.11ax), 2x2, 2.4/5GHz |
| Bluetooth |
5.2 |
| Rear I/O |
| USB |
1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C, 2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 1 Type-C, 4 x USB 2.0 |
| Video |
1 x DisplayPort 1.4 (4K 60Hz), 1 x HDMI 2.1 (4K 60Hz) |
| Other |
2.5Gb LAN, Wi-Fi module, 3 audio jacks, Clear CMOS button |
| Audio |
Realtek 7.1 HD audio codec, up to 24-bit/192kHz |
| Internal Connectors |
| USB Headers |
1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 1 (2 ports), 2 x USB 2.0 (4 ports) |
| Fan Headers |
1 x CPU, 1 x CPU OPT, 1 x AIO pump, 3 x chassis (4-pin) |
| Power |
1 x 24-pin, 1 x 8-pin +12V, 1 x 4-pin +12V |
| RGB / Other |
3 x Addressable Gen 2, 1 x Aura RGB, COM, Thunderbolt (USB4) header |
| Features & BIOS |
| TUF Protection |
DIGI+ VRM, DrMOS, ESD guards, LANGuard, SafeSlot Core+, stainless-steel back I/O |
| Cooling |
VRM heatsink, M.2 heatsinks |
| BIOS |
128Mb flash ROM, UEFI AMI BIOS |
| Software |
Armoury Crate, AI Suite 3, DTS Audio Processing |
