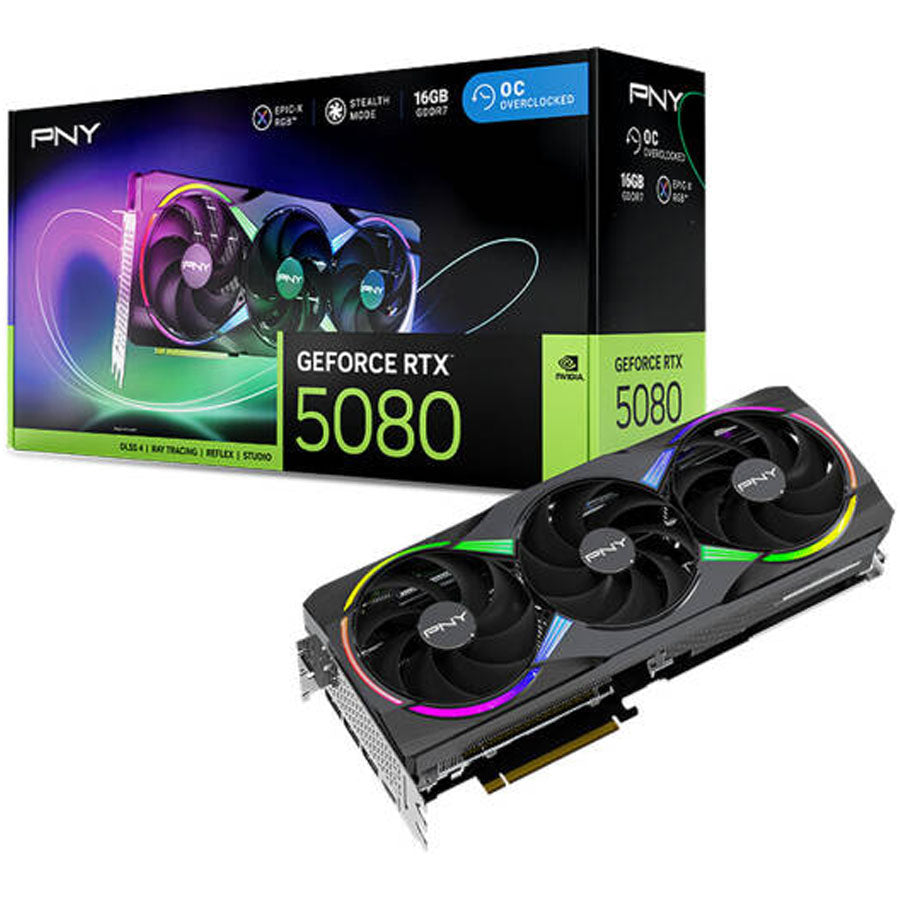

The PNY GeForce RTX 5080 16GB ARGB OC Triple Fan (EPIC-X RGB) is a high-end, factory-overclocked graphics card built on the NVIDIA Blackwell architecture with 10,752 CUDA cores. It pairs 16GB of GDDR7 at 30 Gbps on a 256-bit bus (up to 960 GB/s) with DLSS 4 Multi Frame Generation, full ray tracing and a triple-fan cooler with ARGB lighting for demanding 4K gaming and creative work.
Key Features
NVIDIA GeForce RTX 5080 GPU with 10,752 CUDA cores (Blackwell architecture)
Factory overclocked (OC), base clock 2.30 GHz
16GB GDDR7 at 30 Gbps on a 256-bit bus, up to 960 GB/s bandwidth
5th Gen Tensor cores for DLSS 4 with Multi Frame Generation and 4th Gen RT cores
Triple-fan cooler with ARGB / EPIC-X RGB lighting
3x DisplayPort 2.1b + 1x HDMI 2.1b, up to 4 displays, 4K 480Hz or 8K 165Hz with DSC
PCIe 5.0 x16 interface
360 W TDP, single 16-pin power input (adapter included), 850 W PSU recommended
Full Specifications
General
Brand
PNY
Model
GeForce RTX 5080 16GB ARGB OC Triple Fan (EPIC-X RGB)
Part Number
VCG508016TFXXPB1-O
UPC
751492794242
Colour
Black
Warranty
3-year limited warranty (manufacturer)
GPU
Graphics Chip
NVIDIA GeForce RTX 5080
Architecture
NVIDIA Blackwell
CUDA Cores
10,752
Base Clock
2.30 GHz
Boost Clock
2.78 GHz
Tensor Cores
5th Generation
RT Cores
4th Generation
Memory
Memory Size
16GB
Memory Type
GDDR7
Memory Interface
256-bit
Memory Speed
30 Gbps
Memory Bandwidth
Up to 960 GB/s
Display Outputs
Outputs
3x DisplayPort 2.1b, 1x HDMI 2.1b
Max Resolution
4K 480Hz or 8K 165Hz with DSC
Max Displays
4
NVLink
Not supported
Power
TDP
360 W
Power Input
1x 16-pin (16-pin to 3x 8-pin adapter)
Recommended PSU
850 W
Cooling & Dimensions
Cooling
Triple fan
Lighting
ARGB / EPIC-X RGB
Slot Width
3 slots
Dimensions
12.94 x 5.42 x 2.35 in (approx. 329 x 138 x 60 mm)
Features & Requirements
Interface
PCI Express 5.0 x16
AI Upscaling
NVIDIA DLSS 4 with Multi Frame Generation
System Requirements
PCIe x16 slot (3-slot clearance), Windows 11 64-bit or Linux 64-bit
Who Is It For?
Enthusiast gamers who want high refresh 1440p and 4K performance
Players using DLSS 4 Multi Frame Generation and path tracing
Creators working in 3D rendering, video editing and AI tools with 16GB VRAM
Builders who want ARGB lighting in a high-end build
