| General |
| Brand |
ASUS |
| Model |

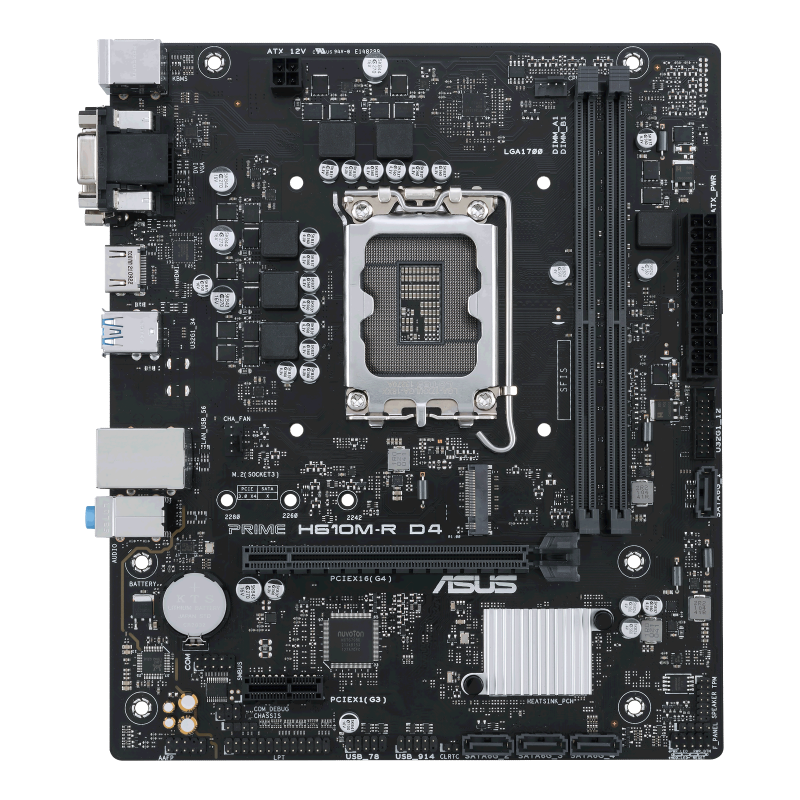

PRIME H610M-R D4 |
| Part Number |
90MB1B40-M0ECY0 |
| Form Factor |
Micro ATX |
| Chipset |
Intel H610 |
| Socket |
LGA1700 |
| Supported CPUs |
Intel Core 14th, 13th & 12th Gen, Pentium Gold and Celeron (65W) |
| Color |
Black |
| Memory |
| Slots |
2 x DDR4 DIMM |
| Type |
DDR4 non-ECC, un-buffered |
| Max Capacity |
64 GB |
| Speeds |
2133 - 3200 MT/s |
| Architecture |
Dual channel |
| XMP |
Intel XMP supported |
| Expansion Slots |
| PCIe x16 |
1 x PCIe 4.0 x16 |
| PCIe x1 |
1 x PCIe 3.0 x1 |
| Storage |
| M.2 |
1 x M.2 (Key M), 2242/2260/2280, PCIe 3.0 x4 |
| SATA |
4 x SATA 6Gb/s |
| Networking |
| LAN |
Realtek 1Gb Ethernet with ASUS LANGuard |
| Audio |
| Codec |
Realtek 7.1 surround HD audio codec |
| Playback |
24-bit/192 kHz |
| Design |
Audio shielding, premium audio capacitors, dedicated audio PCB layers |
| Rear I/O |
| Video |
1 x D-Sub, 1 x DVI-D, 1 x HDMI (4K@60Hz) |
| USB |
2 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A |
| LAN |
1 x 1Gb Ethernet port |
| Audio |
3 x audio jacks |
| PS/2 |
1 x PS/2 keyboard port, 1 x PS/2 mouse port |
| Internal Connectors |
| Fan Headers |
1 x 4-pin CPU fan, 1 x 4-pin chassis fan |
| USB Headers |
1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports) |
| Front Panel |
1 x 10-1 pin system panel header, 1 x front panel audio header (AAFP) |
| Other |
Clear CMOS, chassis intrusion, COM port, LPT, speaker, SPI TPM (14-1 pin) headers |
| Power |
| VRM |
ASUS DIGI+ VRM |
| Main Power |
1 x 24-pin ATX |
| CPU Power |
1 x 4-pin +12V |
| BIOS & Features |
| BIOS |
128 Mb flash ROM, UEFI AMI BIOS |
| Protection |
ASUS 5X Protection III: DIGI+ VRM, LANGuard, overvoltage protection, SafeSlot Core, stainless-steel back I/O |
| Features |
ASUS Q-Design (Q-DIMM, Q-Slot), CrashFree BIOS 3, EZ Flash 3, UEFI BIOS EZ Mode |
| Software |
Armoury Crate, AI Suite 3, ASUS CPU-Z, Norton (trial), WinRAR |
| OS |
Windows 11 / Windows 10 (64-bit) |
| Dimensions |
| Size |
22.6 cm x 19.3 cm (8.9 x 7.6 in, Micro ATX) |
