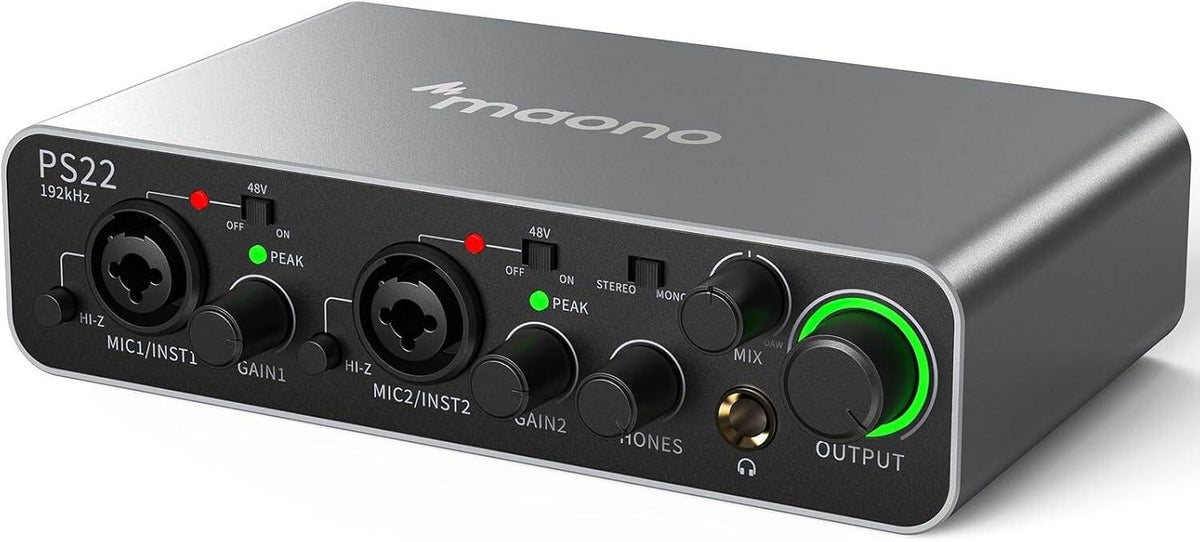

MAONO PS22 ProStudio 2x2 USB-C Audio Interface, 24-bit/192kHz, Up to 60 dB Mic Preamp Gain, 48V Phantom Power, Dual USB-C, Hi-Z Instrument Inputs (PS22)
The MAONO PS22 is a 2-in/2-out USB-C audio interface for recording, podcasting and streaming. It records at up to 24-bit/192 kHz, offers mic preamps with up to 60 dB of gain and 48V phantom power, and adds a second USB-C port so you can connect a phone or a second device alongside your computer, with extra virtual channels through MAONO ProStudio software.
Key Features
24-bit/192 kHz recording on the main USB-C port
Two inputs for microphone, line and instrument sources, with mic preamps offering up to 60 dB of gain
High-impedance instrument inputs (100 kΩ) for guitar and bass
48V phantom power for condenser microphones
Dual USB-C ports for a computer plus a phone or second device
MAONO ProStudio routing software with additional virtual channels and ASIO driver support
Dedicated monitor mix with main outputs and a headphone output, plus a power switch
Works with DAWs such as Pro Tools, Ableton Live and Cubase
Full Specifications
General
Brand
MAONO
Model
PS22
Product Type
USB audio interface
Configuration
2-in / 2-out
Recording
Sample Rates (main USB-C)
44.1, 48, 88.2, 96, 176.4, 192 kHz
Sample Rate (secondary USB-C)
48 kHz
Bit Depth
24-bit
Mic Inputs
Frequency Response
20 Hz – 20 kHz, ±0.25 dB
Dynamic Range
105 dB (A-weighted)
THD+N
0.0035%
EIN
-127 dB (A-weighted)
Max Input Level
-5 dBu
Gain
Up to 60 dB
Impedance
3.3 kΩ
Line Inputs
Frequency Response
20 Hz – 20 kHz, ±1 dB
Dynamic Range
104 dB (A-weighted)
THD+N
0.0035%
Max Input Level
8 dBu
Gain Range
-6 to 48 dB
Impedance
13.5 kΩ
Instrument Inputs
Frequency Response
20 Hz – 20 kHz, ±2 dB
Dynamic Range
102 dB (A-weighted)
THD+N
0.01%
Max Input Level
0 dBu
Gain Range
3 to 57 dB
Impedance
100 kΩ
Main Outputs
Frequency Response
20 Hz – 20 kHz, ±0.1 dB
Dynamic Range
103 dB (A-weighted)
THD+N
0.0045%
Max Output Level
8 dBu
Impedance
600 Ω
Headphone Output
Frequency Response
20 Hz – 20 kHz, ±0.5 dB
Dynamic Range
102 dB (A-weighted)
THD+N
0.0055%
Max Output Power
100 mW
Impedance
18 Ω
Connectivity & Power
USB
2 x USB 2.0 Type-C
Phantom Power
48 V, 6 mA
USB Power Input
5 V, max 1 A
Physical
Dimensions (W x H x D)
178 x 46 x 125 mm
Weight
645 g
Who Is It For?
Podcasters recording two hosts or a host and guest
Singer-songwriters recording vocals and guitar together
Streamers who want studio sound and phone audio in one mix
Home studio producers starting with a compact interface
In the Box
MAONO PS22 audio interface
USB-A to USB-C cable
USB-C to USB-C cable
User manual
Frequently Asked Questions
Can I record two microphones at once? Yes. The PS22 has two inputs, so two microphones or a microphone and an instrument can be recorded together.
Does it power condenser microphones? Yes. It provides 48V phantom power.
Do I need drivers on Windows? Yes. MAONO advises downloading the ProStudio driver for normal use on Windows.
Order the MAONO PS22 2x2 USB audio interface from PC PARK with warranty and fast delivery across Saudi Arabia.
