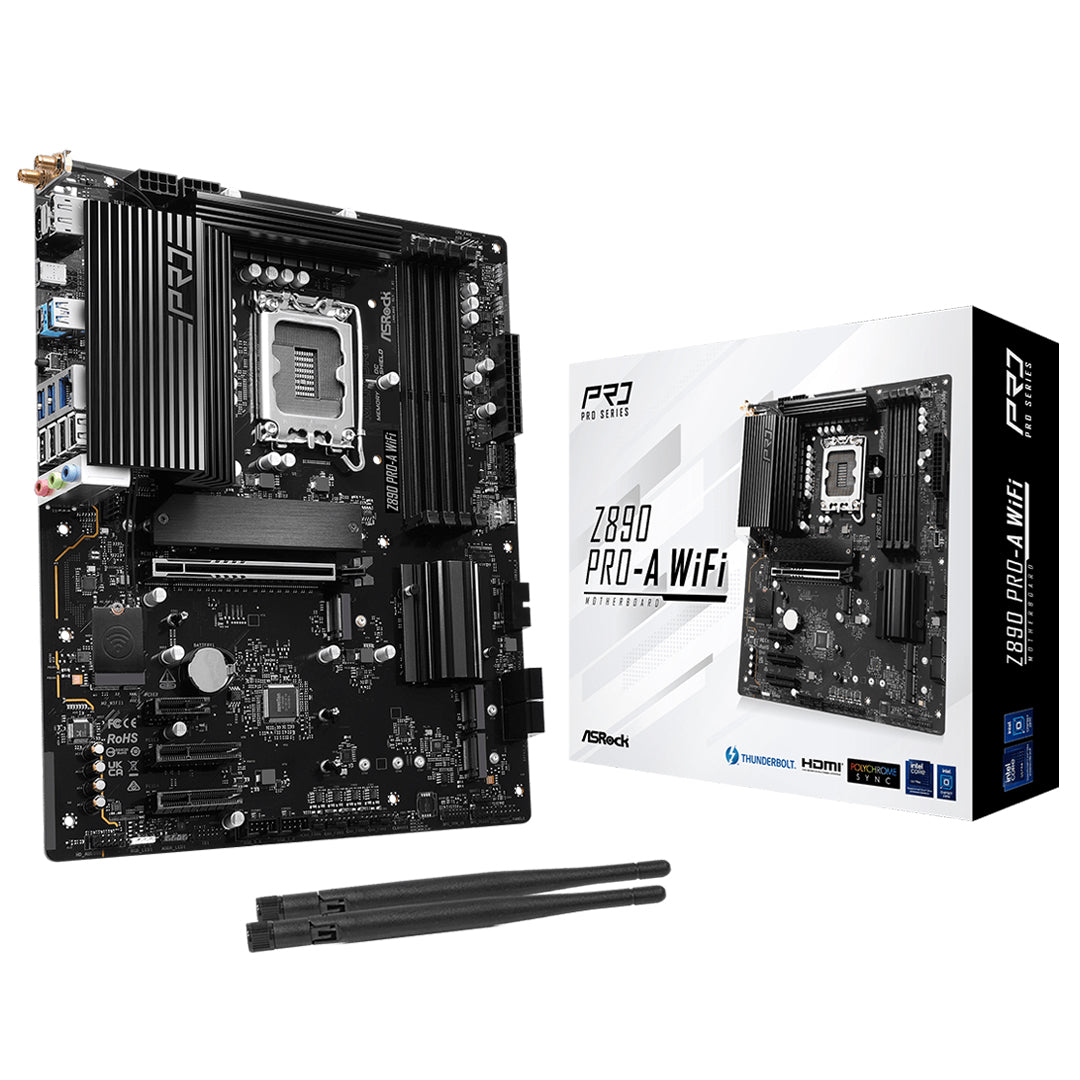

The ASRock Z890 Pro-A WiFi is an ATX motherboard for Intel Core Ultra (Series 2) LGA1851 processors with a 16+1+1+1+1 phase Dr.MOS power design. It provides 4 DDR5 slots (up to 256GB), a PCIe 5.0 x16 slot, four M.2 slots including one PCIe Gen5 x4, a rear Thunderbolt 4 port, Wi-Fi 6E and 2.5G LAN.
16+1+1+1+1 phase power design with Dr.MOS and 2oz copper PCB
4 x DDR5, up to 256GB and 9066+ MHz (OC), CUDIMM, XMP 3.0 and EXPO
4 x M.2 (1 x PCIe Gen5 x4 + 3 x PCIe Gen4 x4) and 4 x SATA 6Gb/s
Thunderbolt 4 / USB4 Type-C (40Gb/s) plus USB 3.2 Gen2x2 Type-C (20Gb/s)
Wi-Fi 6E + Bluetooth 5.3 and Realtek 2.5G LAN
HDMI 2.1 and DisplayPort 1.4 outputs, BIOS Flashback button
Full Specifications
General
Brand
ASRock
Model
Z890 Pro-A WiFi
Part Number
90-MXBP60-A0UAYZ
Form Factor
ATX (30.5 x 24.4 cm)
Processor & Chipset
Socket
LGA1851
Supported CPUs
Intel Core Ultra Processors (Series 2)
Chipset
Intel Z890
Power Design
16+1+1+1+1 phases, Dr.MOS
Memory
Memory Slots
4 x DDR5 DIMM, dual channel
Max Capacity
256GB
Max Speed
Up to 9066+ MHz (OC, 1DPC 1R); 5600 MHz native
Memory Features
CUDIMM, XMP 3.0, EXPO
Expansion & Storage
PCIe Slots
1 x PCIe 5.0 x16, 2 x PCIe 4.0 x4, 1 x PCIe 4.0 x1
M.2
1 x PCIe Gen5 x4, 3 x PCIe Gen4 x4 (one also SATA)
SATA
4 x SATA 6Gb/s, RAID 0/1/5/10
Connectivity
LAN
Realtek RTL8125BG 2.5GbE
Wireless
Wi-Fi 6E (2x2), Bluetooth 5.3
Audio
Realtek ALC897 7.1-channel HD Audio
Rear I/O
Video Outputs
1 x HDMI 2.1, 1 x DisplayPort 1.4, 1 x Thunderbolt 4 (requires CPU with iGPU)
USB
1 x Thunderbolt 4/USB4 Type-C, 1 x USB 3.2 Gen2x2 Type-C, 1 x USB 3.2 Gen2 Type-A, 2 x USB 3.2 Gen1, 4 x USB 2.0
Other
RJ-45, 2 x antenna ports, BIOS Flashback button, 3 x audio jacks
Who Is It For?
Gamers building on Intel Core Ultra 200S who want Z890 overclocking at a sensible price
Users who need Thunderbolt 4 for fast external drives or docks
Builders planning several NVMe SSDs including a Gen5 drive
Anyone wanting built-in Wi-Fi 6E and 2.5G LAN
In the Box
ASRock Z890 Pro-A WiFi motherboard
1 x I/O shield
2 x SATA data cables
2 x Wi-Fi 2.4/5/6 GHz antennas
Frequently Asked Questions
Does the Z890 Pro-A WiFi have Thunderbolt? Yes, it has 1 x rear Thunderbolt 4/USB4 Type-C port (40Gb/s, USB PD up to 15W), which can also output video with an iGPU-equipped CPU.
How many M.2 SSDs can I install? Four: one PCIe Gen5 x4 slot and three PCIe Gen4 x4 slots (one of which also supports SATA M.2), plus 4 SATA ports.
Does it support AMD EXPO memory? Yes, it supports both Intel XMP 3.0 and AMD EXPO DDR5 profiles, up to 256GB and up to 9066+ MHz (OC).
Order the ASRock Z890 Pro-A WiFi (90-MXBP60-A0UAYZ) from PC PARK with warranty and fast delivery across Saudi Arabia.
