| General |
| Brand |
ASUS |
| Model |
Pro WS TRX50-SAGE WIFI |
| Part Number |
90MB1FZ0-M0EAY0 |
| Product Type |
Workstation Motherboard |
| Form Factor |
CEB |
| Chipset |
AMD TRX50 |
| Socket |
AMD Socket sTR5 |
| Supported CPUs |
AMD Ryzen Threadripper PRO 9000 & 7000 WX-Series, Ryzen Threadripper 9000 & 7000 Series |
| Memory |
| Slots |
4 x DIMM |
| Type |
DDR5 ECC Registered (RDIMM) |
| Architecture |
4-channel |
| Capacity / Speed |
Refer to the ASUS CPU / Memory Support list |
| Expansion Slots |
| PCIe 5.0 |
2 x PCIe 5.0 x16 slots, 1 x PCIe 5.0 x16 slot (x8 mode) |
| PCIe 4.0 |
1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 x16 slot (x4 mode) |
| Storage |
| M.2_1 |
Type 2242/2260/2280, PCIe 5.0 x4 |
| M.2_2 |
Type 2242/2260/2280, PCIe 5.0 x4 |
| M.2_3 |
Type 2280, PCIe 4.0 x4 |
| SlimSAS |
1 x SlimSAS (PCIe 4.0 NVMe) |
| SATA |
4 x SATA 6Gb/s ports |
| Networking |
| Ethernet |
1 x Marvell AQtion 10Gb, 1 x Intel I226-LM 2.5Gb |
| Wireless |
Wi-Fi 7 (802.11be), 2x2, 2.4/5/6 GHz |
| Bluetooth |
Bluetooth 5.4 |
| Audio |
| Codec |
Realtek ALC1220P High Definition Audio |
| Playback |
32-bit/192 kHz, 120 dB SNR stereo output |
| Recording |
113 dB SNR line-in |
| Digital |
Optical S/PDIF out |

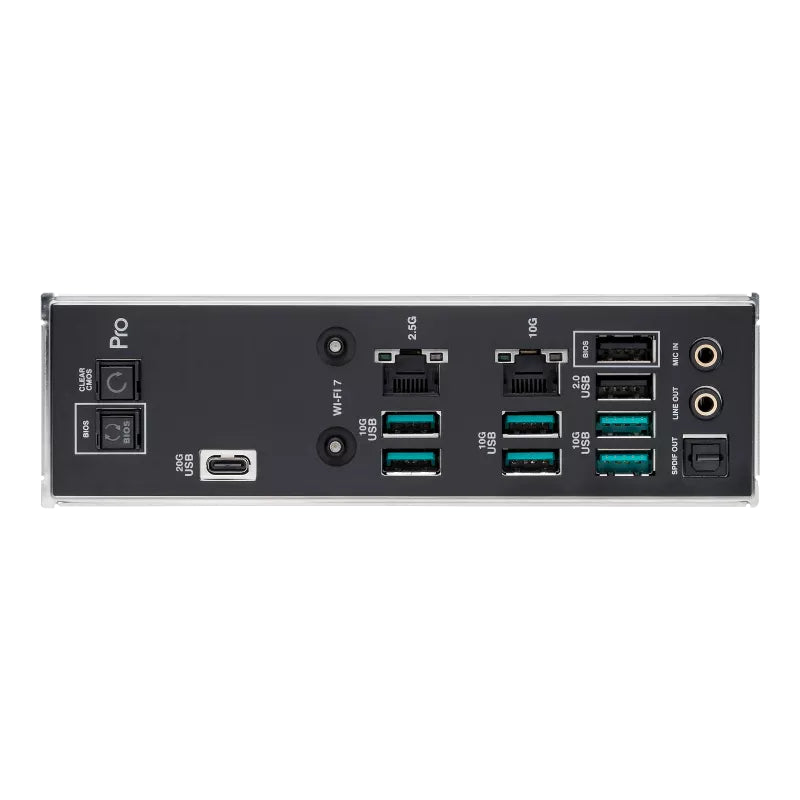

| Rear I/O |
| USB |
1 x USB 20Gbps Type-C, 6 x USB 10Gbps Type-A, 2 x USB 2.0 Type-A |
| Network |
1 x 10Gb LAN, 1 x 2.5Gb LAN, Wi-Fi module |
| Audio |
Audio jacks, optical S/PDIF out |
| Buttons |
BIOS FlashBack button, Clear CMOS button |
| Internal Connectors |
| Fan / Cooling |
CPU fan, CPU OPT fan, W_PUMP+, 4 x chassis fan, 2 x VRM fan headers |
| USB |
USB 20Gbps Type-C front connector, USB 5Gbps header, 2 x USB 2.0 headers |
| Storage |
3 x M.2, 1 x SlimSAS, 4 x SATA |
| Miscellaneous |
BMC header, COM port header, FlexKey, front panel audio, system panel header |
| Power |
| Main Power |
24-pin ATX main power connector(s) |
| CPU Power |
2 x 8-pin +12V power connectors |
| PCIe Power |
Supplementary PCIe slot power input (CPU-to-PCIe adapter cable included) |
| BIOS & Features |
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
| BIOS Utilities |
CrashFree BIOS, FlexKey, BIOS FlashBack |
| Manageability |
WOL by PME, PXE |
| Q-Design |
Q-Code, Q-LED, Q-DIMM, Q-Slot, M.2 Q-Latch, Q-Connector |
| Cooling |
Active VRM cooling heatsinks |
| OS Support |
Windows 11 |
| Dimensions |
| Form Factor |
CEB |
| Size |
12 x 11 inch (30.5 x 28.3 cm) |
