| General |
| Brand |
ASUS |
| Model |

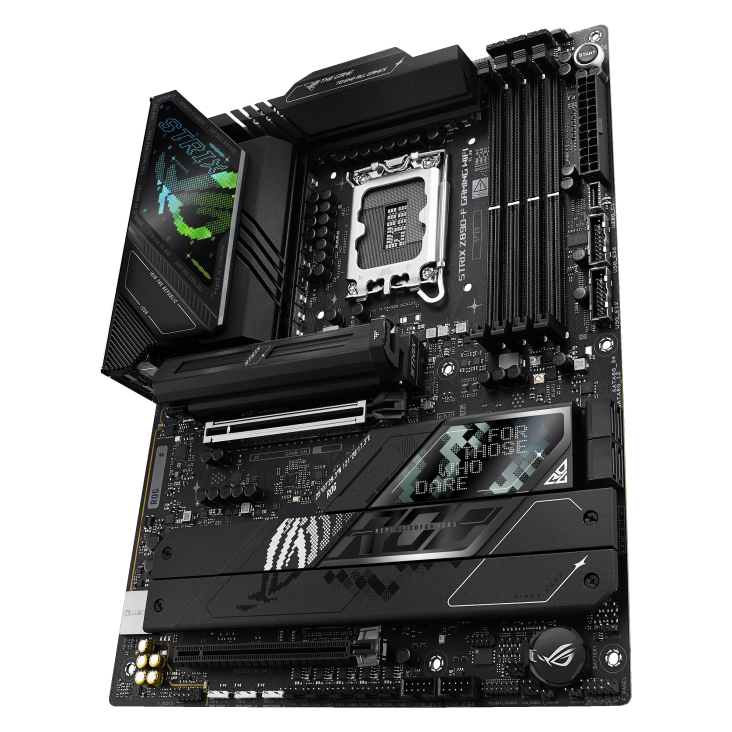

ROG STRIX Z890-F GAMING WIFI |
| Part Number |
90MB1I40-M0EAY0 |
| Form Factor |
ATX |
| Chipset |
Intel Z890 |
| Socket |
Intel LGA1851 |
| Supported CPUs |
Intel Core Ultra processors (Series 2); Turbo Boost 2.0 and 3.0 |
| Memory |
| DIMM Slots |
4x DDR5, dual channel |
| Max Capacity |
256GB |
| Speeds |
Up to 9066+ MT/s (OC) |
| Memory Profiles |
Intel XMP, AEMP III |
| Expansion Slots |
| PCIe x16 (CPU) |
1x PCIe 5.0 x16 |
| PCIe x16 (Chipset) |
1x PCIe 4.0 x16 slot (x4 mode) |
| Storage |
| M.2 Slots |
5x (2242/2260/2280/22110); M.2_1 supports PCIe 5.0 x4, others PCIe 4.0 |
| SATA |
4x SATA 6Gb/s ports |
| Networking |
| LAN |
1x Intel 2.5Gb Ethernet, ASUS LANGuard |
| Wi-Fi |
Wi-Fi 7 (802.11be), 2x2, 2.4/5/6GHz, up to 5.8Gbps |
| Bluetooth |
Bluetooth 5.4 |
| Audio |
| Codec |
ALC4080, 7.1 surround (with compatible chassis) |
| Features |
Savitech SV3H712 amplifier; 120 dB SNR stereo playback; optical S/PDIF out |
| Rear I/O |
| Thunderbolt 4 |
2x Type-C with display output |
| USB 10Gbps |
6x (4x Type-A + 2x Type-C, one with 30W PD) |
| USB 5Gbps |
4x Type-A |
| USB 2.0 |
2x Type-A |
| Video |
1x DisplayPort (8K@60Hz), 1x HDMI 2.1 (4K@60Hz), DisplayPort via Thunderbolt 4 |
| Buttons |
BIOS FlashBack and Clear CMOS buttons |
| Internal Connectors |
| Fan Headers |
1x CPU fan, 1x CPU OPT fan, 1x AIO pump, 5x chassis fan (4-pin) |
| RGB Headers |
3x Addressable Gen 2 headers |
| Front USB |
1x USB 20Gbps Type-C connector, 2x USB 5Gbps headers (4 ports), 2x USB 2.0 headers (4 ports) |
| Other |
Thunderbolt/USB4 header |
| Power |
| Main Power |
1x 24-pin |
| CPU Power |
2x 8-pin +12V |
| BIOS & Features |
| BIOS |
256Mb Flash ROM, UEFI AMI BIOS, WOL by PME, PXE |
| Design |
5K black metallic capacitors, M.2 Q-Latch, Q-Release, Q-Slide, SafeSlot, Q-LED, pre-mounted I/O shield |
| Software |
ROG CPU-Z, Armoury Crate, Aura Sync, Fan Xpert 4 with AI Cooling II; AIDA64 Extreme, Norton 360 and Adobe Creative Cloud trials |
| Dimensions |
| Form Factor |
ATX |
| Size |
30.5 x 24.4 cm (12 x 9.6 in) |
