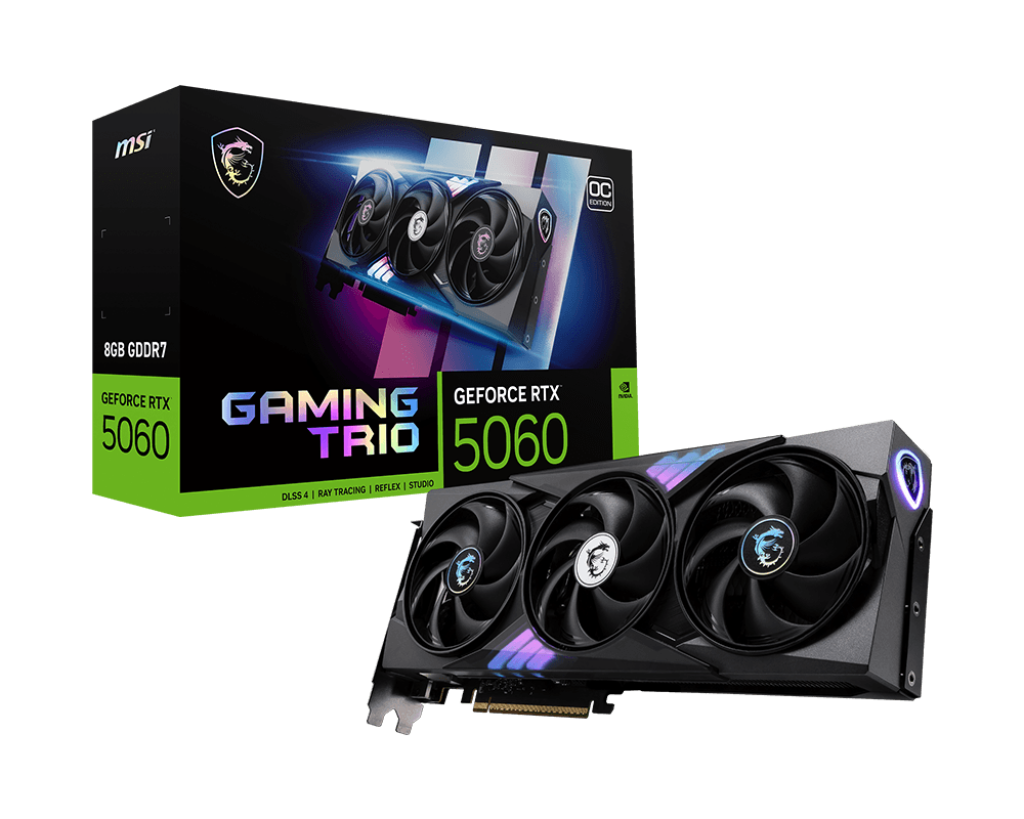

The MSI GeForce RTX 5060 8G GAMING TRIO OC (G5060-8GTC) is a factory-overclocked graphics card built on the NVIDIA Blackwell architecture with 3840 CUDA cores and a boost clock of 2625 MHz (2640 MHz in Extreme Performance mode). It pairs 8GB of GDDR7 at 28 Gbps with DLSS 4 and a premium TRI FROZR 4 triple-fan cooler for cool, quiet 1080p and 1440p gaming.
Key Features
NVIDIA GeForce RTX 5060 with 3840 CUDA cores (Blackwell architecture)
Boost clock 2625 MHz, Extreme Performance 2640 MHz via MSI Center
8GB GDDR7 on a 128-bit bus at 28 Gbps
5th Gen Tensor cores for DLSS 4 and 4th Gen RT cores for ray tracing
TRI FROZR 4 thermal design with three STORMFORCE fans
Nickel-plated copper baseplate and reinforced metal backplate
3x DisplayPort 2.1b + 1x HDMI 2.1b, up to 4 displays and 8K output
Single 8-pin power connector, 155 W, 550 W PSU recommended
NVIDIA G-SYNC support and MSI Center / Afterburner software
Full Specifications
General
Brand
MSI
Series
GAMING TRIO
Model
GeForce RTX 5060 8G GAMING TRIO OC
Model Number
G5060-8GTC
Part Number
912-V537-021
GPU
Graphics Chip
NVIDIA GeForce RTX 5060
Architecture
NVIDIA Blackwell
CUDA Cores
3840
Boost Clock
2625 MHz
Extreme Performance Clock
2640 MHz (MSI Center)
Tensor Cores
5th Generation
RT Cores
4th Generation
Memory
Memory Size
8GB
Memory Type
GDDR7
Memory Bus
128-bit
Memory Speed
28 Gbps
Display Outputs
DisplayPort
3x DisplayPort 2.1b
HDMI
1x HDMI 2.1b (up to 4K 480Hz or 8K 120Hz with DSC, VRR, HDR)
Max Resolution
7680 x 4320
Max Displays
4
HDCP
Supported
G-SYNC
Supported
Power
Power Consumption
155 W
Power Connector
1x 8-pin
Recommended PSU
550 W
Cooling & Dimensions
Cooling
TRI FROZR 4, 3x STORMFORCE fans
Baseplate
Nickel-plated copper
Backplate
Reinforced metal backplate
Dimensions (L x W x H)
300 x 125 x 44 mm
Weight
797 g (card) / 1206 g (package)
Features
Interface
PCI Express Gen 5 x16 (uses x8)
AI Upscaling
NVIDIA DLSS 4
APIs
DirectX 12 Ultimate, OpenGL 4.6
Software
MSI Center, MSI Afterburner
Who Is It For?
Gamers targeting high frame rates at 1080p and smooth 1440p
Players who want DLSS 4 and ray tracing in new titles
Builders who want a cool and quiet triple-fan card
Streamers and creators using NVIDIA encoders and AI tools
