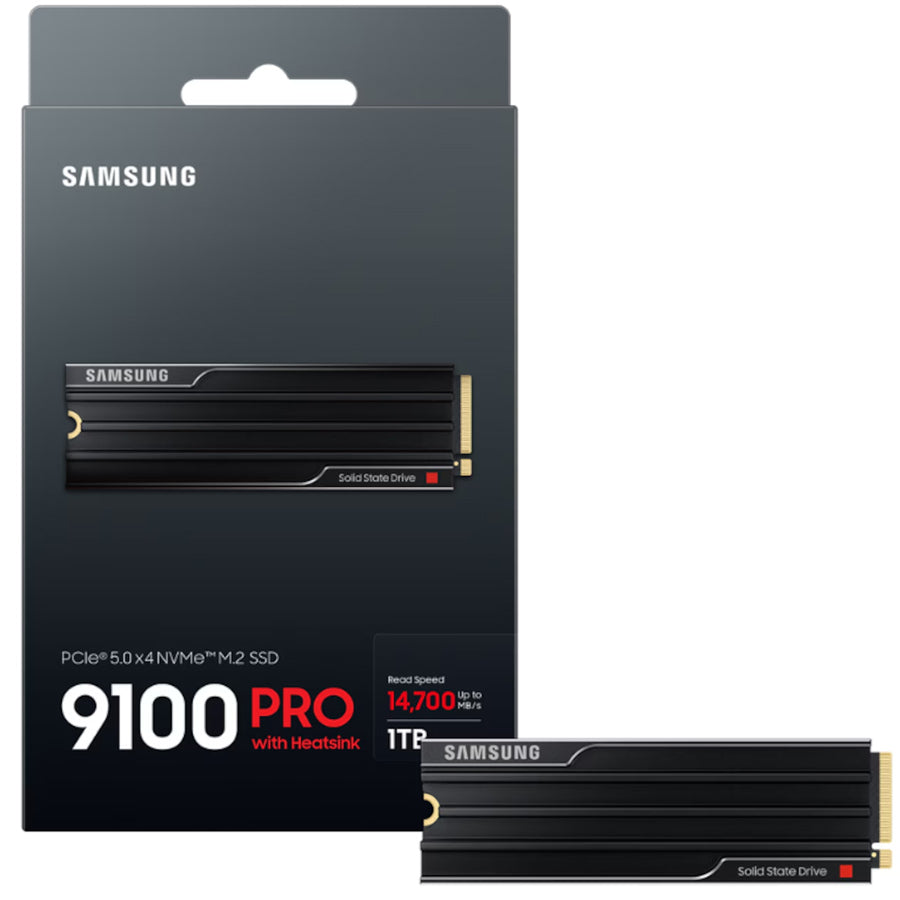

The Samsung 9100 PRO 1TB with Heatsink (MZ-VAP1T0CW) is a flagship M.2 2280 NVMe SSD on the PCIe 5.0 x4 interface, reaching sequential speeds of up to 14,700MB/s read and 13,300MB/s write with random performance of up to 1,850K / 2,600K IOPS. It pairs Samsung V-NAND TLC and a Samsung in-house controller with 1GB LPDDR4X cache, and its integrated PCI-SIG D8 compliant heatsink keeps it cool in desktops and the PlayStation 5. It is rated for 600TBW with a 5-year limited warranty.
Key Features
PCIe 5.0 x4, NVMe 2.0 interface, backward compatible with PCIe 4.0 x4 and 3.0 x4
Up to 14,700MB/s sequential read and 13,300MB/s sequential write
Up to 1,850K IOPS random read and 2,600K IOPS random write
1GB LPDDR4X DRAM cache with Samsung V-NAND TLC
Integrated heatsink compliant with the PCI-SIG D8 standard, ideal for PS5 and desktops
600TBW endurance and 1.5 million hours MTBF
AES 256-bit hardware encryption, TCG/Opal V2.0 and IEEE1667
Samsung Magician software support and 5-year limited warranty
