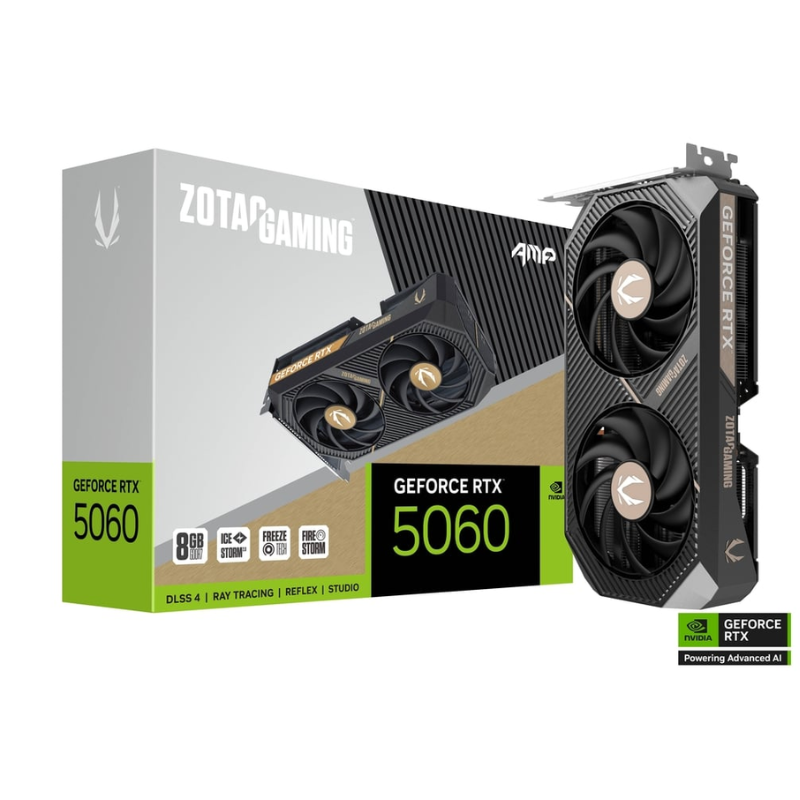

The ZOTAC GAMING GeForce RTX 5060 AMP is a compact, factory-overclocked graphics card built on the NVIDIA Blackwell architecture with 3840 CUDA cores and a 2550 MHz engine clock. It comes with 8GB of GDDR7 memory at 28 Gbps, DLSS 4 and ray tracing, all in a 2-slot, NVIDIA SFF-Ready design that fits small and mid-size builds.
Key Features
NVIDIA GeForce RTX 5060 with 3840 CUDA cores (Blackwell architecture)
Factory overclocked to a 2550 MHz engine clock, 614 AI TOPS
8GB GDDR7 on a 128-bit bus at 28 Gbps
NVIDIA DLSS 4 and real-time ray tracing
Compact 2-slot card (220.5 mm long), NVIDIA SFF-Ready
BladeLink fan air cooling
3x DisplayPort 2.1b (UHBR20) + 1x HDMI 2.1b, up to 4 displays
Single 8-pin input, 155 W, 600 W PSU recommended
ZOTAC FireStorm software for monitoring and tuning
Full Specifications
General
Brand
ZOTAC
Series
ZOTAC GAMING AMP
Model
GeForce RTX 5060 AMP
Part Number
ZT-B50600F-10M
Supported OS
Windows 11 / Windows 10 64-bit (v1809 or later)
GPU
Graphics Chip
NVIDIA GeForce RTX 5060
Architecture
NVIDIA Blackwell
CUDA Cores
3840
Engine Clock
2550 MHz
AI TOPS
614
Memory
Memory Size
8GB
Memory Type
GDDR7
Memory Bus
128-bit
Memory Speed
28 Gbps
Display Outputs
DisplayPort
3x DisplayPort 2.1b with UHBR20 (up to 4K 480Hz or 8K 165Hz with DSC)
HDMI
1x HDMI 2.1b (up to 4K 480Hz HDR or 8K 120Hz HDR with DSC, Gaming VRR)
Max Displays
4
HDCP
2.3
Power
Power Consumption
155 W
Power Input
1x 8-pin
Recommended PSU
600 W
Cooling & Dimensions
Cooling
Air cooled, BladeLink fans
Slot Size
2 slots
Dimensions (L x H x W)
220.5 x 120.25 x 41.6 mm
Form Factor
NVIDIA SFF-Ready
Features
Interface
PCI Express 5.0 x8
AI Upscaling
NVIDIA DLSS 4
APIs
DirectX 12 Ultimate, OpenGL 4.6
SLI
No
Software
ZOTAC FireStorm
Who Is It For?
Gamers who want high frame rates at 1080p and capable 1440p performance
Small form factor builders who need a short 2-slot card
Players who want DLSS 4 and ray tracing on a mid-range budget
Upgraders moving from older GTX or RTX 20/30 series cards
In the Box
ZOTAC GAMING GeForce RTX 5060 AMP graphics card
User manual
Frequently Asked Questions
Will it fit a small case? Yes. It is NVIDIA SFF-Ready, 2 slots wide and 220.5 mm long. Check that your case supports a 120 mm card height.
What power supply do I need? ZOTAC recommends a 600 W power supply. The card uses one 8-pin connector and draws up to 155 W.
Does it support DLSS 4? Yes. As a Blackwell-based RTX 50 series card it supports NVIDIA DLSS 4 in supported games.
Order the ZOTAC GAMING GeForce RTX 5060 AMP 8GB from PC PARK with warranty and fast delivery across Saudi Arabia.
