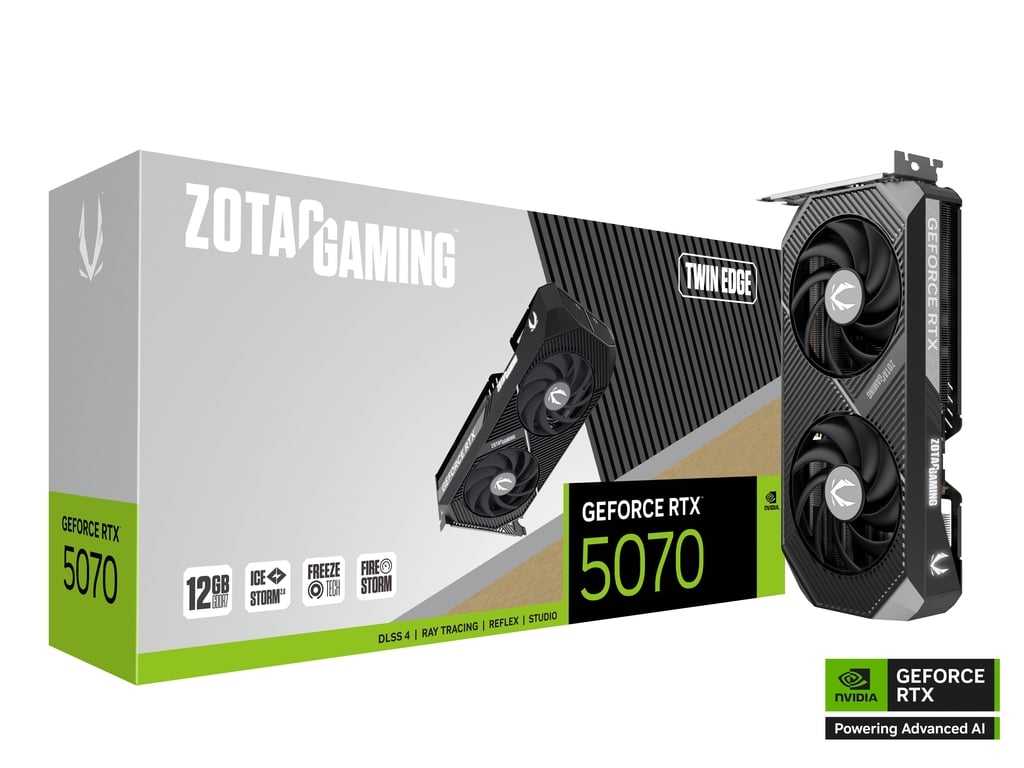

The ZOTAC GAMING GeForce RTX 5070 Twin Edge is a compact dual-fan graphics card built on the NVIDIA Blackwell architecture with 6144 CUDA cores and a boost clock of up to 2512 MHz. Its 12GB of GDDR7 memory runs at 28 Gbps on a 192-bit bus (672 GB/s), delivering DLSS 4 and ray tracing for high refresh 1440p gaming in a dual-slot design.
Key Features
NVIDIA GeForce RTX 5070 with 6144 CUDA cores (Blackwell architecture)
Base clock 2325 MHz, boost clock up to 2512 MHz
12GB GDDR7 on a 192-bit bus at 28 Gbps, 672 GB/s bandwidth
NVIDIA DLSS 4 and 4th Gen ray tracing
Dual-fan IceStorm 2.0 cooling with FREEZE fan stop
Compact dual-slot card, about 241.5 mm long
3x DisplayPort 2.1b + 1x HDMI 2.1b, up to 4 displays and 8K output
Single 12V-2x6 power input, 250 W, 650 W PSU recommended
Full Specifications
General
Brand
ZOTAC
Series
ZOTAC GAMING Twin Edge
Model
GeForce RTX 5070 Twin Edge
Part Number
ZT-B50700E-10P
GPU
Graphics Chip
NVIDIA GeForce RTX 5070
Architecture
NVIDIA Blackwell
CUDA Cores
6144
Base Clock
2325 MHz
Boost Clock
Up to 2512 MHz
Memory
Memory Size
12GB
Memory Type
GDDR7
Memory Bus
192-bit
Memory Speed
28 Gbps
Memory Bandwidth
672 GB/s
Display Outputs
DisplayPort
3x DisplayPort 2.1b
HDMI
1x HDMI 2.1b
Max Resolution
7680 x 4320 (8K)
Max Displays
4
Power
Power Consumption
250 W
Power Input
1x 12V-2x6
Recommended PSU
650 W
Cooling & Dimensions
Cooling
IceStorm 2.0, dual BladeLink fans, FREEZE fan stop
Slot Size
Dual slot
Dimensions (L x H x W)
241.5 x 120.1 x 40.6 mm
Features
Interface
PCI Express 5.0 x16
AI Upscaling
NVIDIA DLSS 4
APIs
DirectX 12 Ultimate, OpenGL 4.6
Who Is It For?
Gamers targeting high refresh 1440p gaming
Players who want DLSS 4 Multi Frame Generation and ray tracing
